The Tactilus® A – H and R series sensors feature two basic hub types that ensure proper operation and connectivity
| Compatibility | TS10 - WP2 - Bodyfitter |
| Connection | USB - Bluetooth - WiFi |
| Max. Sensing Points | 8x8 to 128x128 |

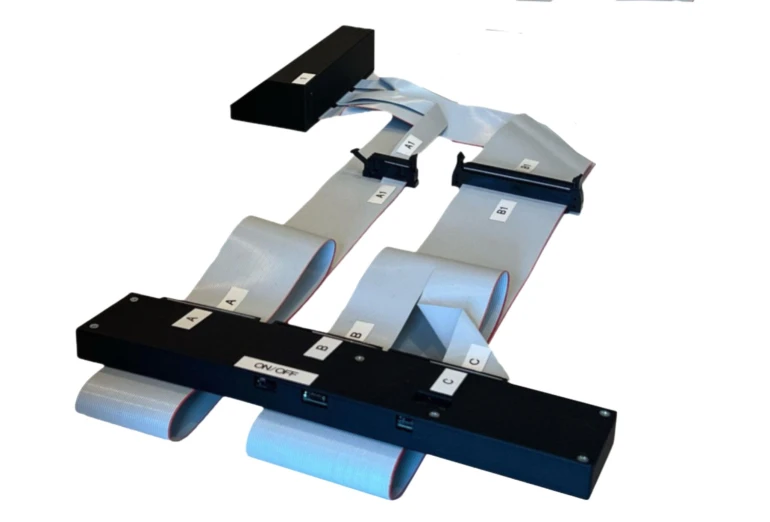

SPI HUBs (SMHUB, STHUB, HDHUB) connect SPI pressure sensors to the analysis software, enabling real-time data acquisition and transmission. They support different sensor configurations and provide stable connectivity (USB, Bluetooth, or WiFi) for applications in industrial, medical, and sports fields.
3 HUB models are available to connect the sensors with the software.
| Model | Min Matrix | Max Matrix | Connection | Battery inside | Software |
|---|---|---|---|---|---|

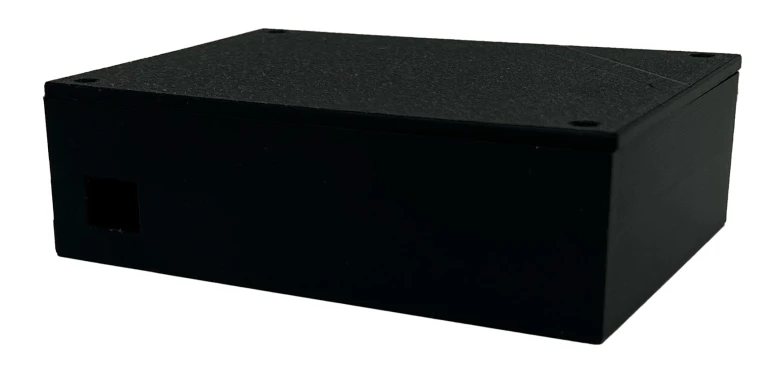

| SMHUB | 8x8 | 16x16 | USB | No | TS10 - WP2 |

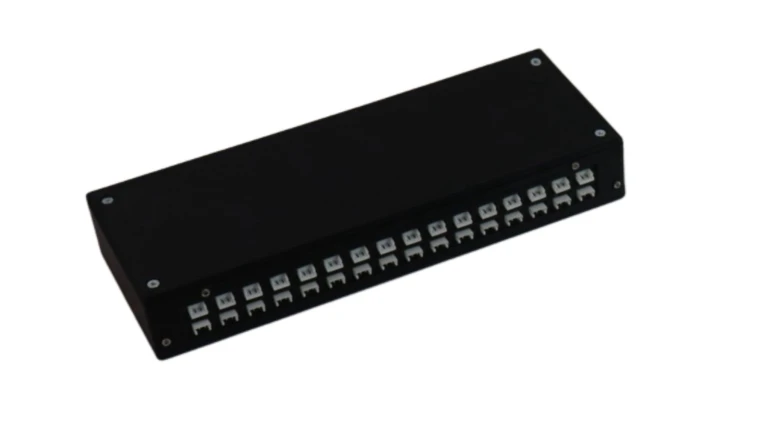

| STHUB | 48x48 | 48x96 | USB - Bluetooth - WiFi | Yes | TS10 - WP2 - Biomech - Bodyfitter |

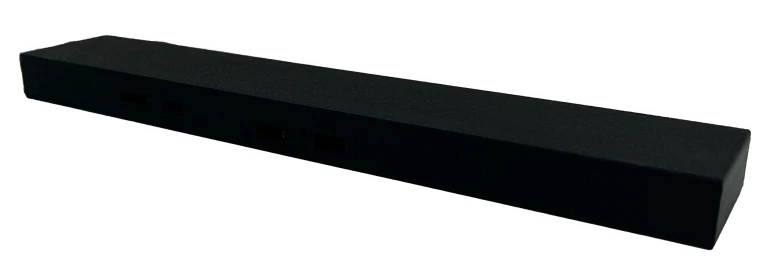

| HDHUB | 32x32 | 128x128 | USB - Bluetooth - WiFi | Yes | TS10 - WP2 - Bodyfitter |
Want to better understand how HUB can integrate into your projects?
Book an online demo with one of our technicians.
During the session, we will showcase the features of the HUB and their dedicated software, provide real-world application examples, and give you all the information you need to evaluate the solution best suited to your needs.
We are here to guide you in selecting and integrating the most effective technology for your operational environment.
Selection is based on pressure range, sensor geometry, spatial resolution,
environmental conditions, and application requirements. Our technical team supports
customers throughout the selection and design process.
Our pressure sensors support a wide range of pressure levels, from low-force
measurements to high-pressure applications, depending on sensor technology and
configuration.
Yes. The sensors are thin and flexible, allowing them to conform to curved, uneven,
or complex geometries.
Yes. Custom sensor designs and formats can be provided to meet specific
application requirements.
Temperature and humidity can influence sensor behavior. Sensors should be
operated within the specified environmental limits.
Yes. The sensors are designed for repeated use when operated within their specified
mechanical and environmental limits.
The software provides color pressure maps, numerical values, graphs, and statistical
analysis tools to support detailed evaluation.
Protective layers or sealed sensor configurations are available for applications
involving liquids or oils. The appropriate solution depends on the operating
environment.
Yes, depending on the sensor model and system configuration.
Yes. Pressure data can be visualized and recorded in real time, allowing dynamic
analysis.
Sensors are manufactured using inert, non-toxic materials and are suitable for
medical, biomedical, and research applications, subject to application-specific
requirements.
Yes. Pressure sensors can be used with a wide range of materials, including metals,
plastics, glass, and composites.
Sensors should be stored in a dry, temperature-controlled environment and
protected from excessive mechanical stress and direct light.
Sensor lifetime depends on usage conditions. When handled and operated correctly,
sensors provide reliable performance over extended periods.
Yes. Dedicated software is available for pressure visualization, quantification, and
reporting.
The software processes sensor signals to generate pressure maps, numerical
outputs, graphs, and analytical reports.
Yes. The software allows users to create detailed, customizable reports.
Yes. Our technical team provides support for system selection, application setup,
data interpretation, customization, and training.
