The Tactilus® FREE FORM

The Tactilus® free form sensor system is a “user constructed” tactile surface pressure system that provides unprecedented flexibility and ease of use.

The FreeForm philosophy uses single-point sensor to empower the user to select collection rather than the constrained “matrix” inherent in traditional fixed surface sensor skins.

Technical specifications

N° of Sensors	max 32
Power Supply	3-6 VDC
Technology	Resistive
Max. Scan Speed	Up to 1,000 hertz
Pressure Range	0.1 to 200 PSI (0.007 to 141 kg/cm2)
Min. sensor size	Custom from 0.37 in (9.5 mm)
Minimum Thickness	From 14 mils
Max. Sensing Points	Up to 2,600 – 2,800
Max. Sensor Size	Multiple lined sensor elements
Temperature Range	0° to 45°C
Repeatability	±10%
Hysteresis	10%
Non-linearity	10%

Features and functionality

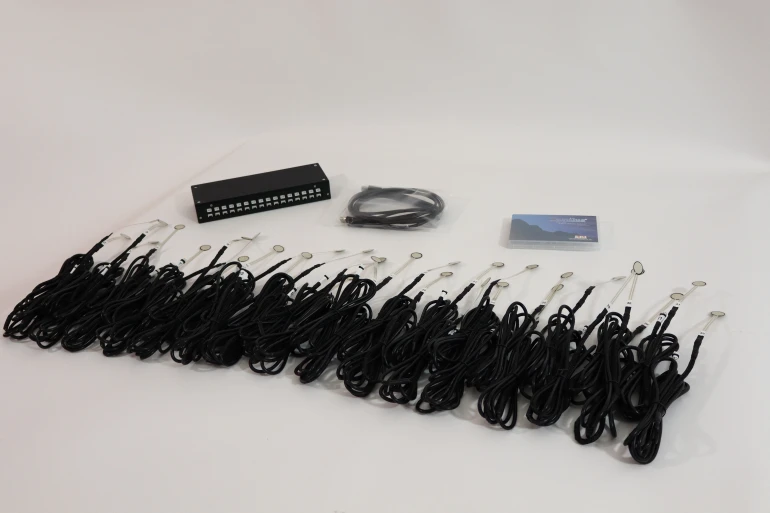

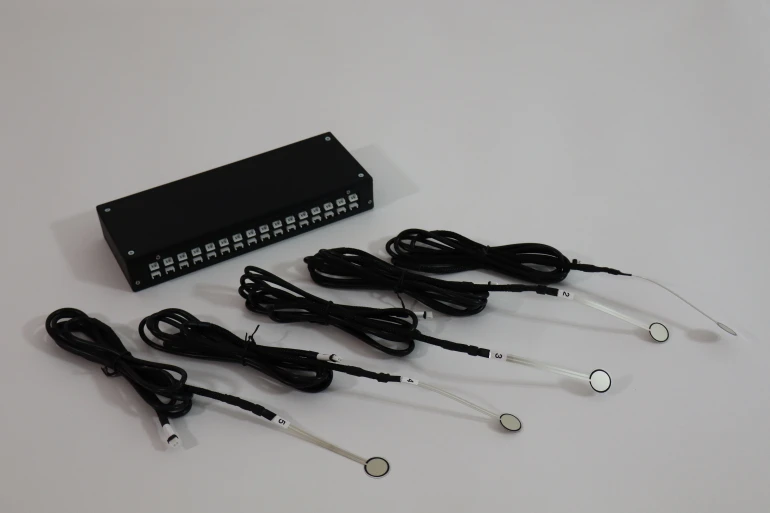

Designed for multi-axis topographies or curved surfaces, the Tactilus® Free Form sensor system offers engineers the ability to collect and ingest data from up to 32 separate sensor elements simultaneously, positioned at specific points on the application surface to maximize data collection efficiency and value.

This new approach to tactile surface pressure mapping preserves the integrity and utility of the data, allowing engineers to build their own customized sensor “lattice".

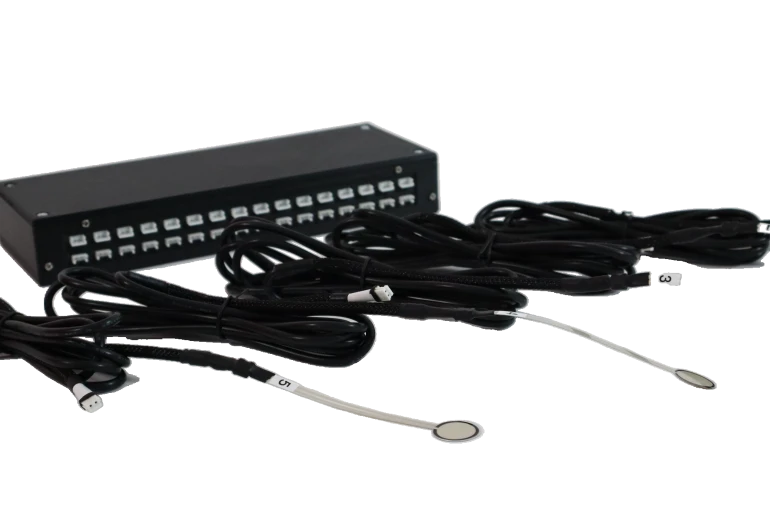

Free Form systems easily connect to a HUB, providing simple and immediate integration for centralized data management.
