SMART FPS

Foot Insole Sensor Systems

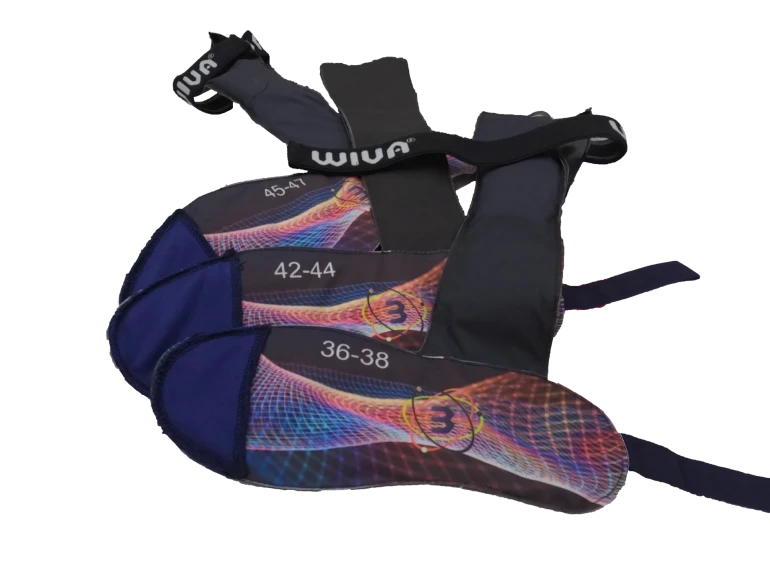

Tactilus® foot insole sensors are the smallest and lightest insole sensors on the market.

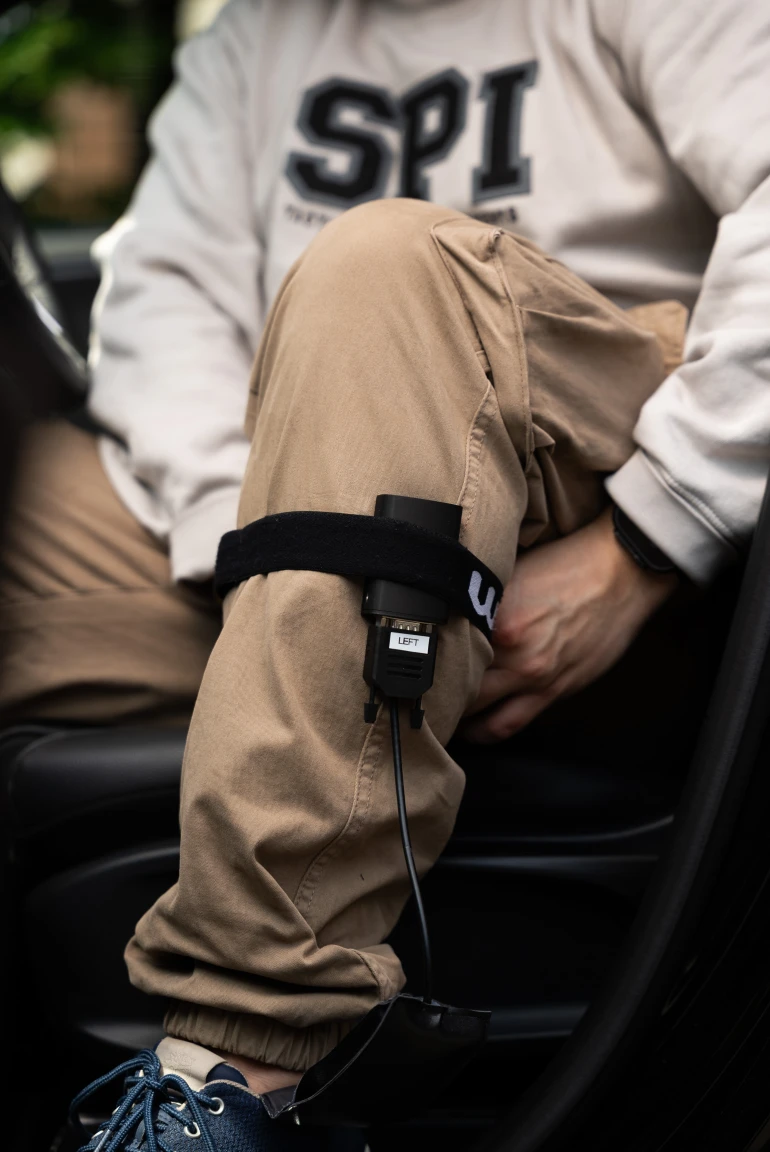

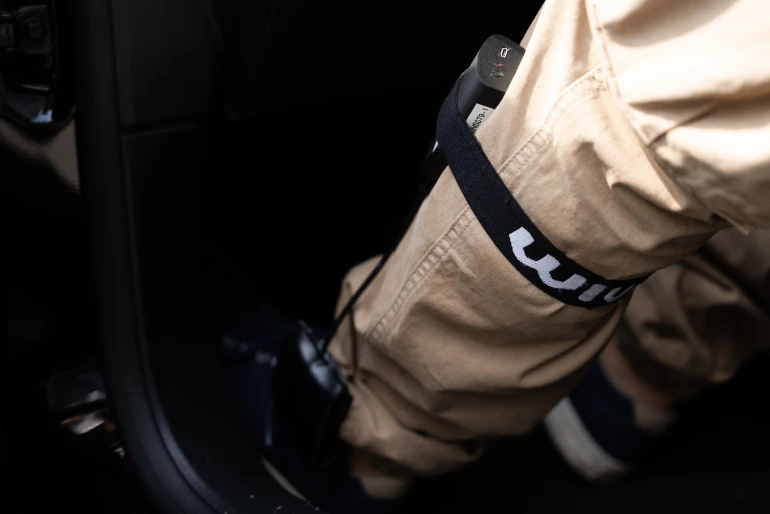

The battery-operated unit, equipped with a tiny transmitter, allows the user to move up to 30 feet away from the recording laptop.

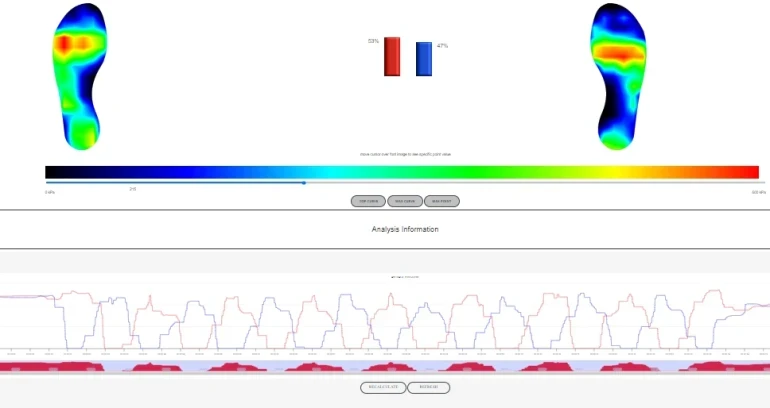

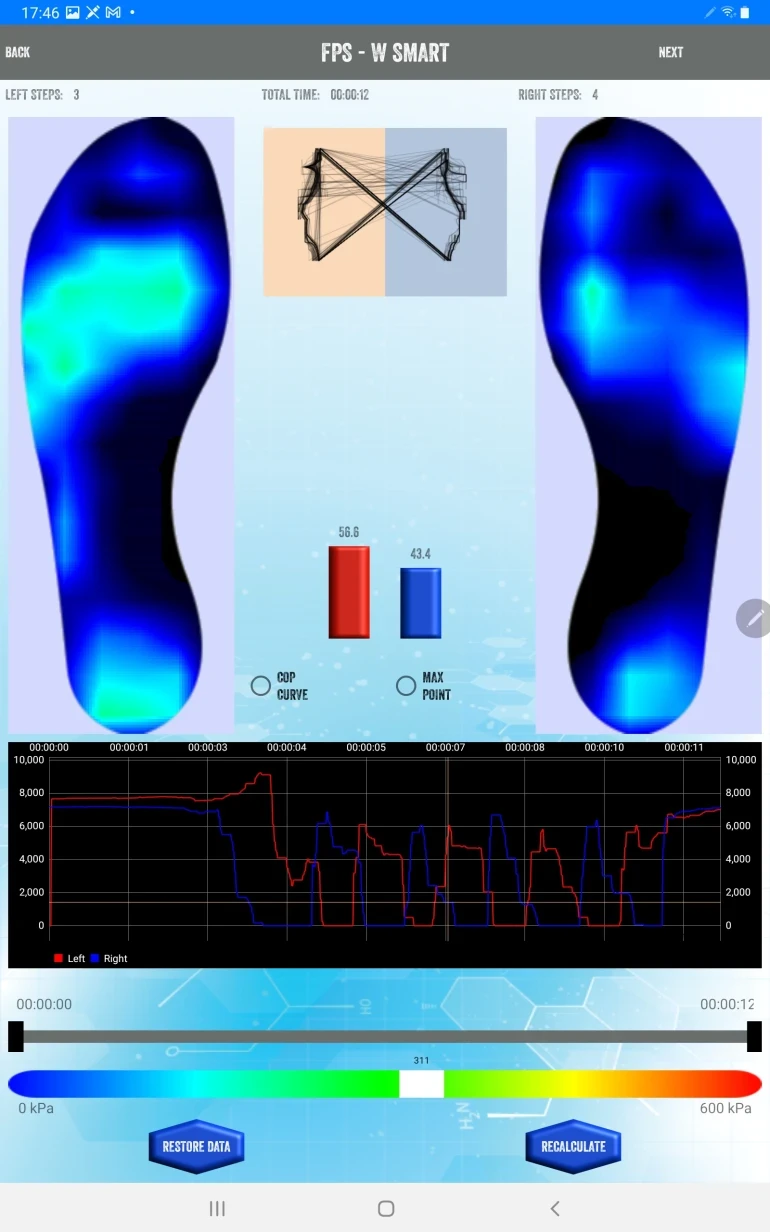

Built on decades of experience in plantar foot pressure analysis and sensor design, Tactilus® provides an extremely durable yet highly sensitive sensing device. Statistical and mathematical data are translated into detailed 2D and 3D pseudocolor pressure maps.

Technical specifications

N° of Sensors	16 × 8 (128 sensing points) per foot
Technology	Resistive
Max. Scan Speed	Up to 300 Hz
Compatibility	Windows
Connection	USB / WiFi
Pressure Range	0 – 30 PSI (0 – 2.1 kg/cm²)
Min. sensor size	0.62 in × 0.44 in (1.6 cm × 1.1 cm)
Minimum Thickness	50 mils (1.27 mm)
Accuracy	±10%
Repeatability	± 2%
Hysteresis	± 5%
Substrate	Fabric
Non-linearity	± 1.5%

Features and functionality

Tactilus® foot insole sensors are the smallest and lightest insole sensors on the market.

Sophisticated algorithms deliver powerful smoothing and filtering capabilities, while advanced thresholding features allow users to focus on specific regions of interest and identify high- or low-pressure zones with precision.

Benefits

Pre-calibrated
Most economical unit on the market
USB / WiFi connectivity (High Performance Sensor)
Inherently shear resistant
Smallest and lightest insole system available
Resistant to electromagnetic noise, temperature, and humidity fluctuations

Software

SMART FPS

Foot Insole Sensor Systems

Technical specifications

Features and functionality

Benefits

Software

Suitable for:

Advanced Human Interface

Automotive

Electronics

Mechanical

Medical

Orthopedic / Podiatry

Rehabilitation

Robotics

Sport

Transportation
