Temperature sensor system

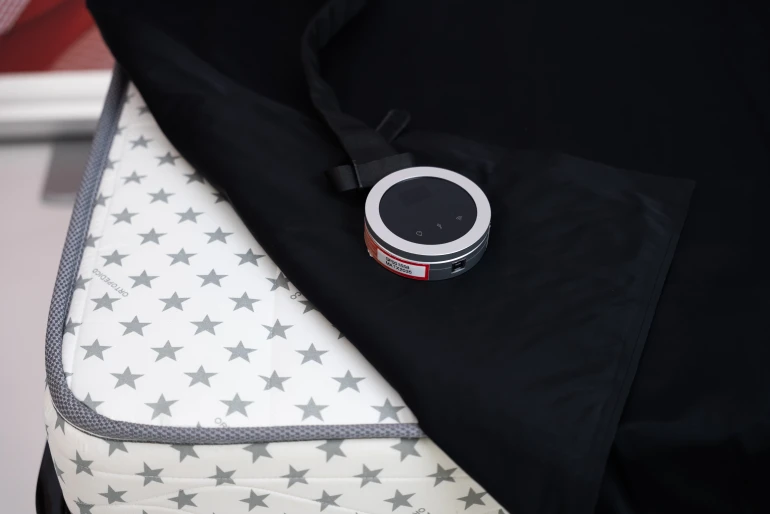

Tactilus® Temperature Sensor System

The Tactilus® temperature sensor system is designed to allow manufacturers and retailers to measure temperature distribution and magnitude between two surfaces.

Technical specifications

Technology	Thermistor
Max. Scan Speed	Up to 40 hertz
Min. sensor size	Customizable from 0.5 in2 (9mm2)
Minimum Thickness	50 mils (1.27mm)
Max. Sensing Points	Up to 512
Max. Sensor Size	Up to 26” x 76” (66 x 193 cm)
Temperature Range	68º – 158º F (20º – 70º C)
Accuracy	± 10%
Repeatability	± 2%
Hysteresis	± 5%
Non-linearity	± 1.5%

Common applications

Design and testing of seats and mattresses: Detection of temperature distribution between the body and the support surface
Ergonomic analysis: Study of comfort and interaction between user and padded supports
Clinical and biomedical research: Temperature mapping on bedridden patients or in prolonged posture
Human-machine interfaces: Optimization of temperature at contact points in operational or vehicular environments

Main advantages

Consumer Database – Designed to track customers and sales representatives performance and response-to-sale ratios
Foreign Languages – Software available in Spanish, French, Chinese and German
Private Labeling – Name and logo available on both hardware and software
Handheld Remote Control
Retail Environment Version – Touchscreen panel and graphical user interface
Wireless Capability

Tactilus® modular architecture enables users to capture temperature information using the same base electronics. Through the sophisticated application of resistive thermistor technology, the system sets new standards for scientific validity and cost effectiveness.

Tiny sensing cells cover the entire surface of the sensor “skin,” enabling discrete spot temperature analysis at any point within the contact region.

Tactilus® captures data from these sensing points and assimilates it into powerful, user-friendly Windows®-based software, providing colorized temperature maps and detailed statistical reports.
